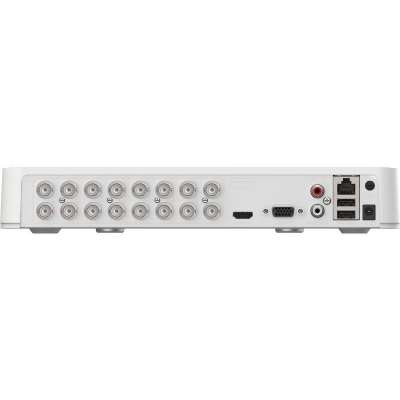

• Model DS-7116HGHI-M1/T • DVR Type Turbo HD / 5-in-1 DVR • Analog Video Input 16 × BNC • Supported Formats HDTVI / HDCVI / AHD / CVBS • IP Camera Input 2 IP channels, up to 18 channels total • IP Camera Resolution Up to 5 MP • Analog Recording Up to 1080p Lite @ 15 fps • Video Compression H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 • Audio Input 1 × RCA + up to 16-ch audio via coaxial cable • Audio Output 1 × RCA • Two-Way Audio Supported • HDMI Output 1920 × 1080 @ 60 Hz • VGA Output 1920 × 1080 @ 60 Hz • Synchronous Playback 16-channel • Network Bandwidth 96 Mbps • LAN Port 1 × RJ45, 10/100 Mbps • Remote Connections Up to 128 • Remote Access Hik-Connect, web/PC network access • HDD Interface 1 × SATA • HDD Capacity Up to 6 TB per HDD according to the current M1/T datasheet • USB 2 × USB 2.0 • Motion Detection 2.0 Human & vehicle classification on analog channels • Power Supply 12 V DC, 1.6 A • Power Consumption ? 7 W without HDD • Operating Temperature -10°C to +55°C • Humidity 10%–90% • Dimensions 285 × 210 × 48 mm • Weight ? 1.8 kg without HDD
