Inclusive of all taxes (GST)

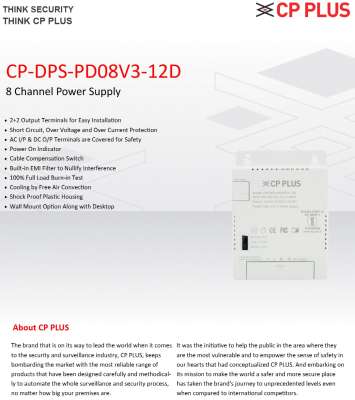

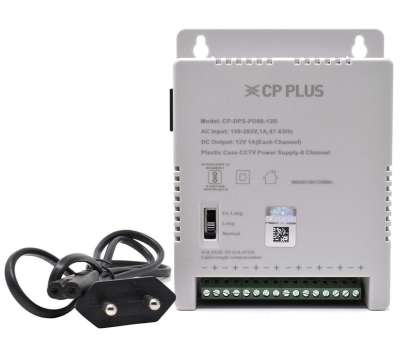

Product Type: 8 Channel Power Supply (CCTV Use) Brand: CP PLUS Model No: DPS PD08V3 12D Features: Built-in Overload, Overvoltage & Short Circuit Protection LED Indicator for Power Status 100% Full Load Burn-In Test High Efficiency & Low Heat Generation Metal Enclosure with Lock & Ventilation Ideal for CCTV Camera Power Distribution Easy Wall or Rack Mount Installation Product Specification Input Voltage: 180–264 V AC Output Voltage: 12V DC (Adjustable: 11.4V – 13.2V) Current Range: 0–10 Amp Rated Power: 120W Efficiency: ?84% Frequency: 47–63 Hz Ripple Noise Level: ?100 mVp-p Voltage Tolerance: ±2.0% Line Regulation: ±1.0% Overload Capacity: 110%–200% of Rated Output Inrush Current: 20A @ 115V AC, 40A @ 230V AC Leakage Current: <2 mA @ 240V AC Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: ?100M Ohms Working Temperature: -20°C to 40°C Storage Temperature: -20°C to 85°C Humidity: 20%–90% (Non-condensing) Temperature Coefficient: 0.03%/°C (0 to 50°C) Vibration Resistance: 10–500 Hz, 3G for 10 min/cycle, 60 min duration Timer Specs: Setup Time: ?600ms, Rise Time: ?30ms @ Full Load Hold-Up Time: ?13ms @ Full Load Enclosure Type: Metallic, Lockable Mounting: Wall Mount/Cabinet Friendly Indicator: LED (Power On Status) Dimensions: 187 x 103 x 52 mm Weight: Approx. 1.2 kg Country of Origin: India
